Description

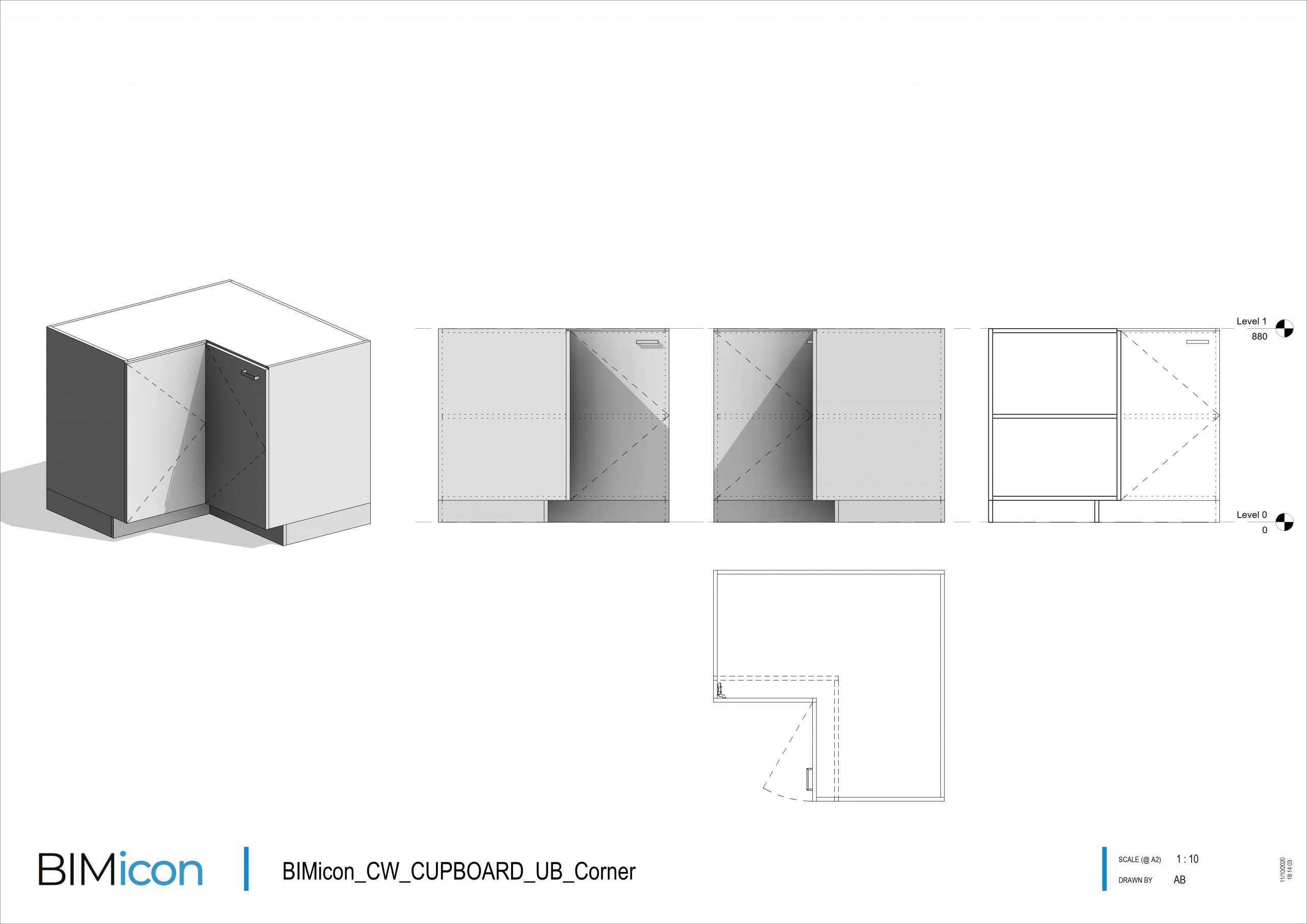

Casework_Cupboard_Under Bench_Corner
Revit 2018
Fully parametric Under Bench Corner-Cupboard that features fully native & accurate geometry and allows for material customisation.
Family Types (customisable):
- 300/300W x 600/600D x 880H
- 450/450W x 600/600D x 880H
Parameters:
- Depth 1
- Depth 2
- Extent_Side 1
- Extent_Side 2
- Height
- Door angle
- Base height
- Base setback
- Shadow line
- Spanner depth
- Panel thickness
- Reference lines visibility
- Handle face offset
- Handle side offset
- Handle top offset
- Handle length
- Handle position (horizontal/vertical)
- Handle visibility
Materials and Finishes:
- Door
- Handle
- Panel
- Base front, sides and back
